Description

Overview:
The latest 4K Ultra game capture card live box, it supports input and loop-out resolutions up to 2160p60 HDR, 1080p240 and 1440p144, recording resolutions up to 1080p120, 2160p30, 10bit HEVC mp4 and 10bit HDR.
Features:
It can capture astonishing 4Kp30 HDR video content, and record up to 120 frames per second in crystal clear full HD.
High Refresh Rate pass through gets an edge over the competition with support for 1440p 144Hz and 1080p 240Hz displays, making latency less than 50ms.
Uncompressed HD videos ensure that your gameplay is completely unaltered, making the recording so easy.

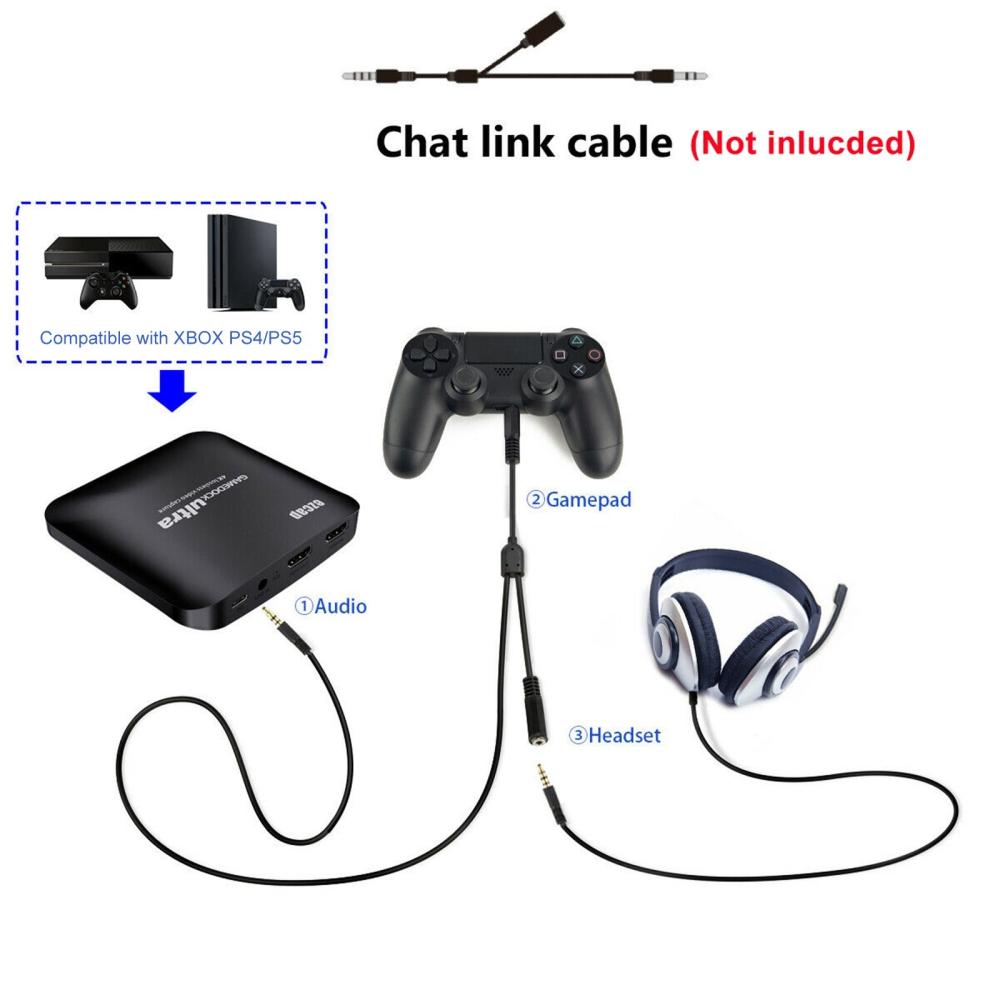

Equipped with audio port, support 3.5mm LINE-IN.
No external power supply required, small size, easy to carry and use.

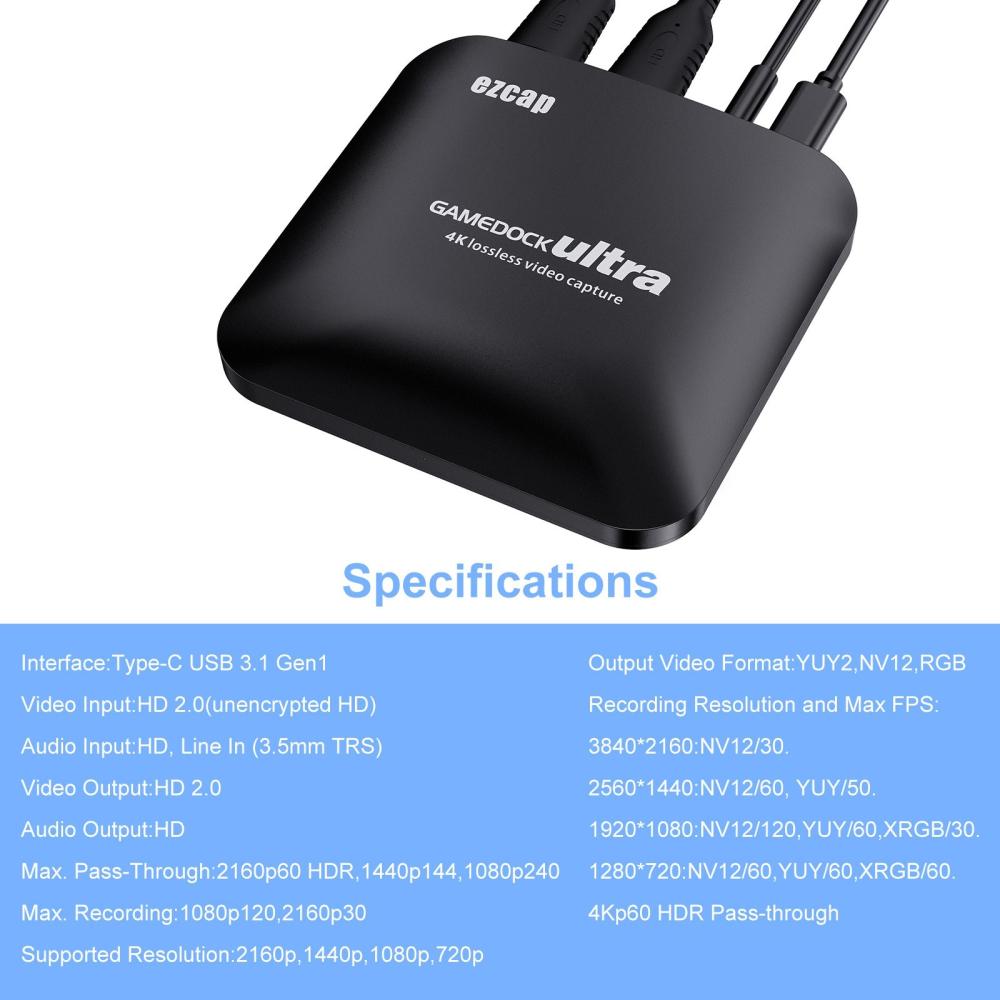

Specifications:

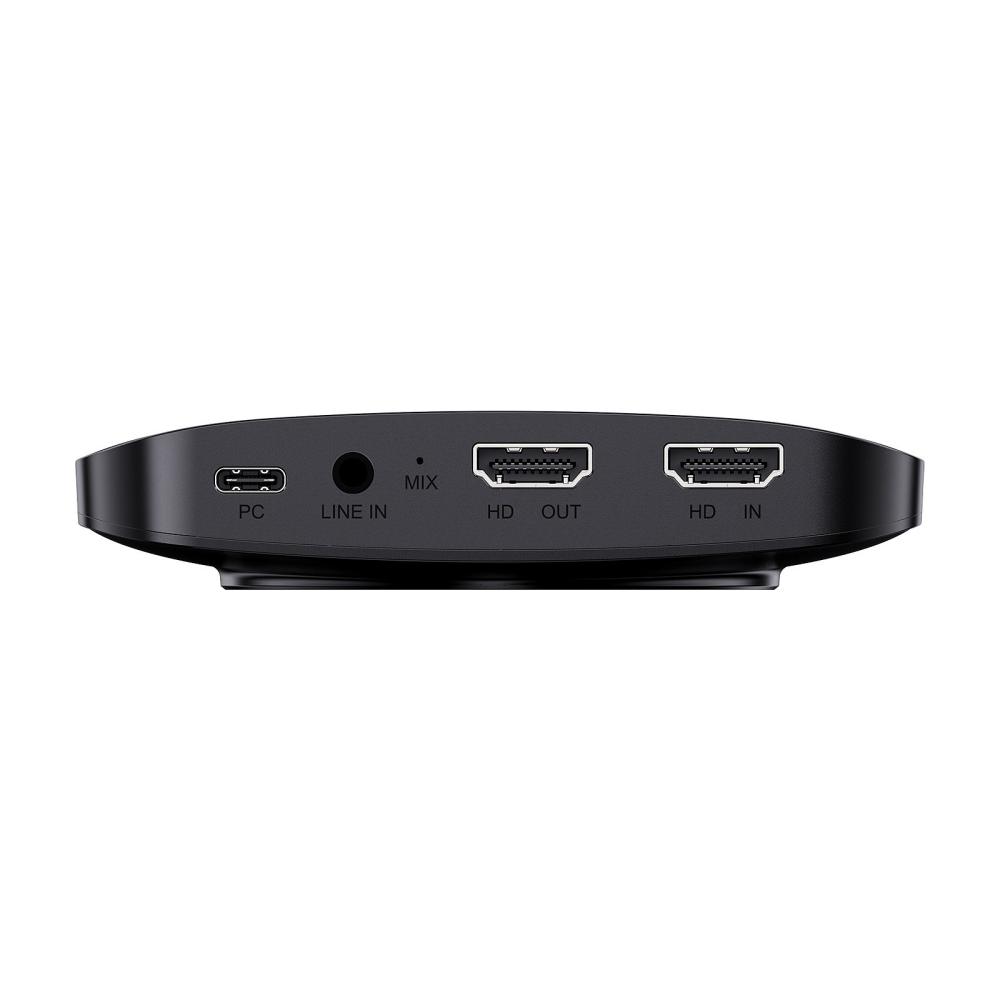

Interface:Type-C USB 3.1 Gen1
Video Input:HD 2.0(unencrypted HD)
Audio Input:HD, Line In (3.5mm TRS)
Video Output:HD 2.0
Audio Output:HD
Max. Pass-Through:2160p60 HDR,1440p144,1080p240
Max. Recording:1080p120,2160p30
Supported Resolution:2160p,1440p,1080p,720p
Output Video Format:YUY2,NV12,RGB
Recording Resolution and Max FPS:
3840*2160:NV12/30.
2560*1440:NV12/60, YUY/50.
1920*1080:NV12/120,YUY/60,XRGB/30.
1280*720:NV12/60,YUY/60,XRGB/60.
4Kp60 HDR Pass-through
Package Size: 13.2*13.2*5.6cm / 5.2*5.2*2.2in
Package Weight: 350g / 12.35oz

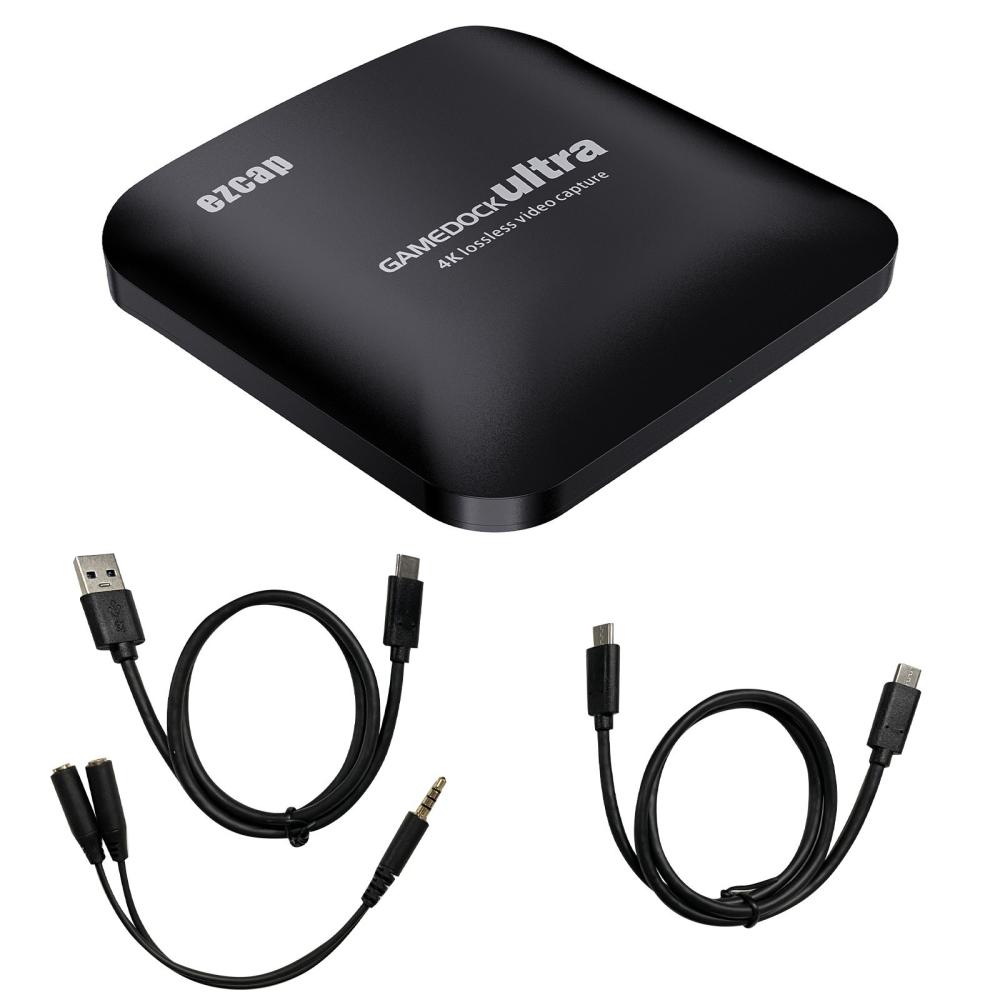

Package List:
1 * Capture Box
1 * USB3.1 Cable
1 * Type-C Cable
1 * 3.5MM Cable
1 * User Manual
