Description

Overview:

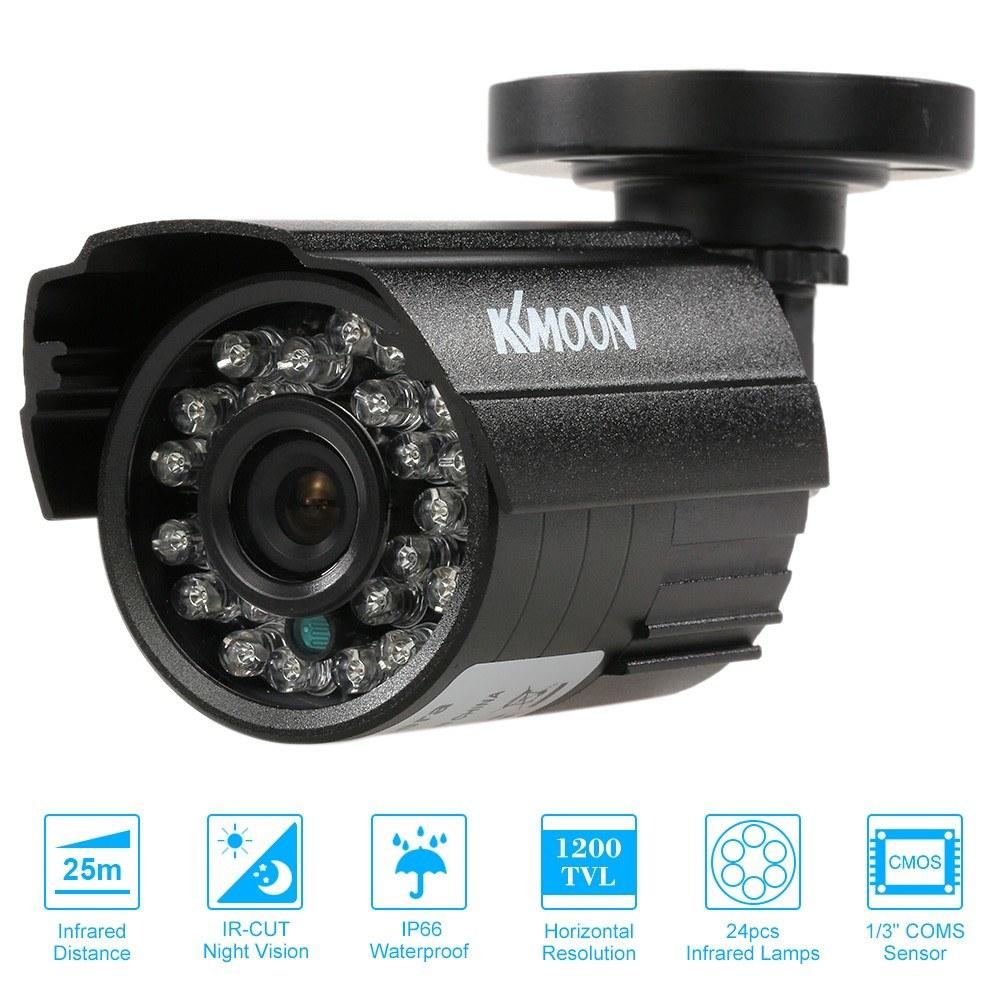

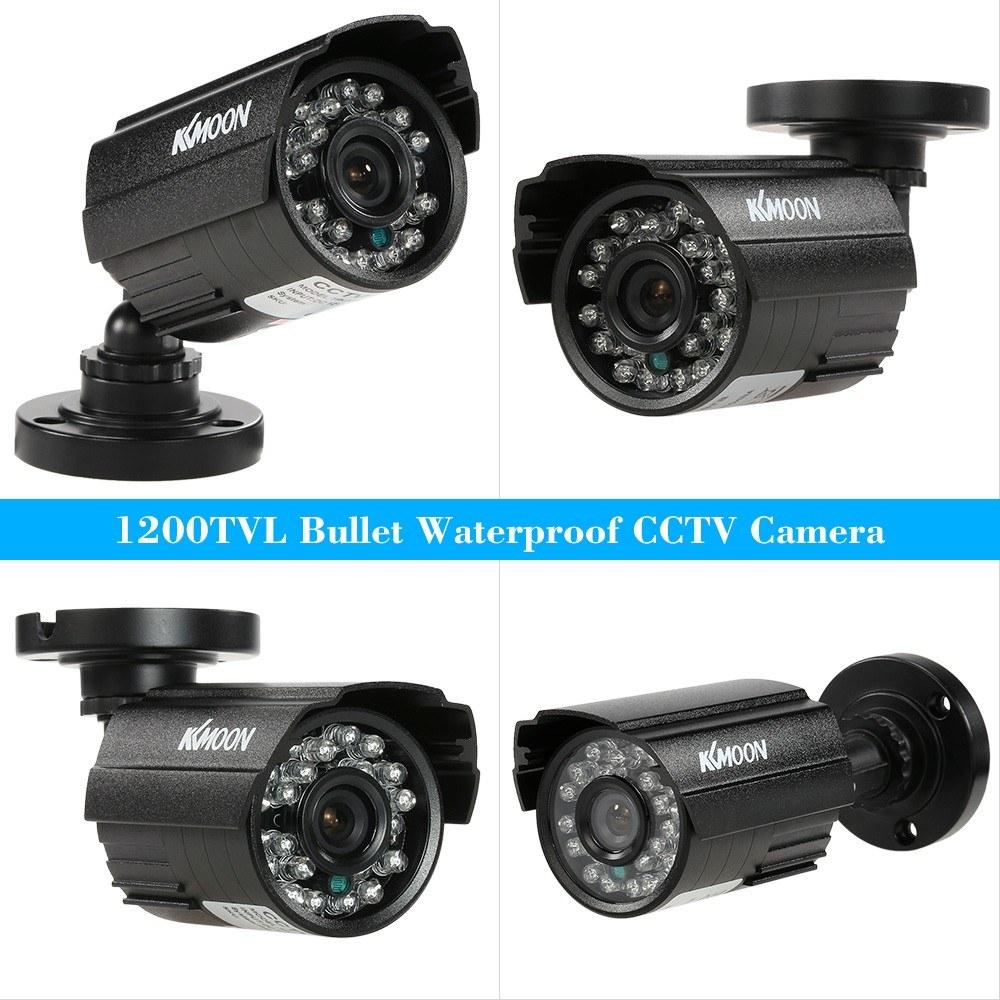

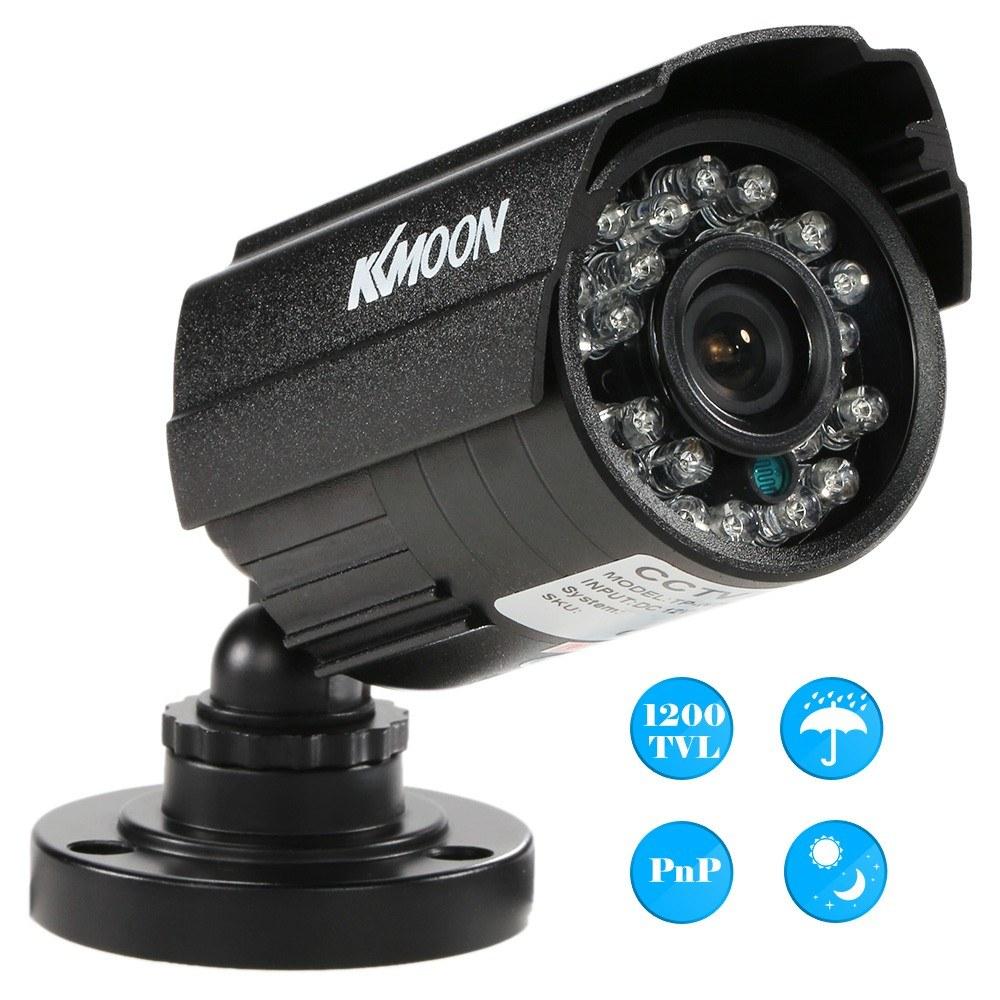

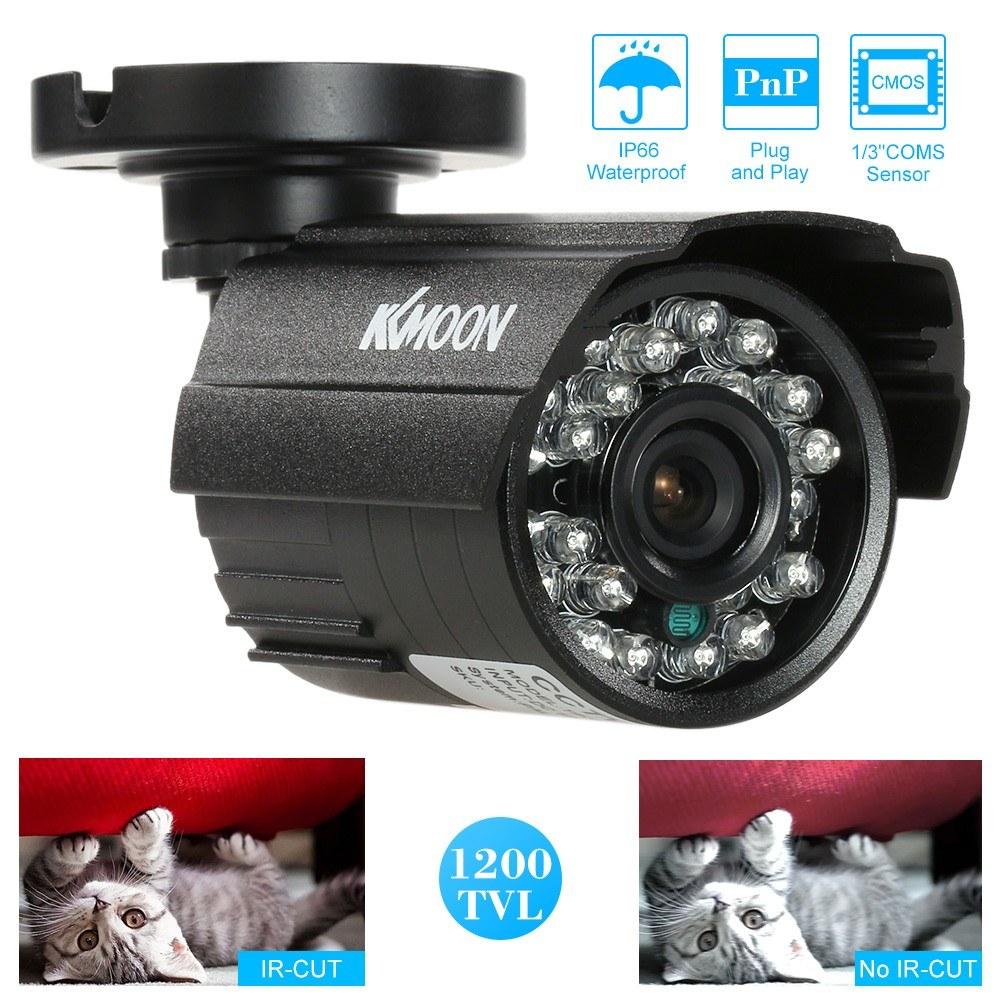

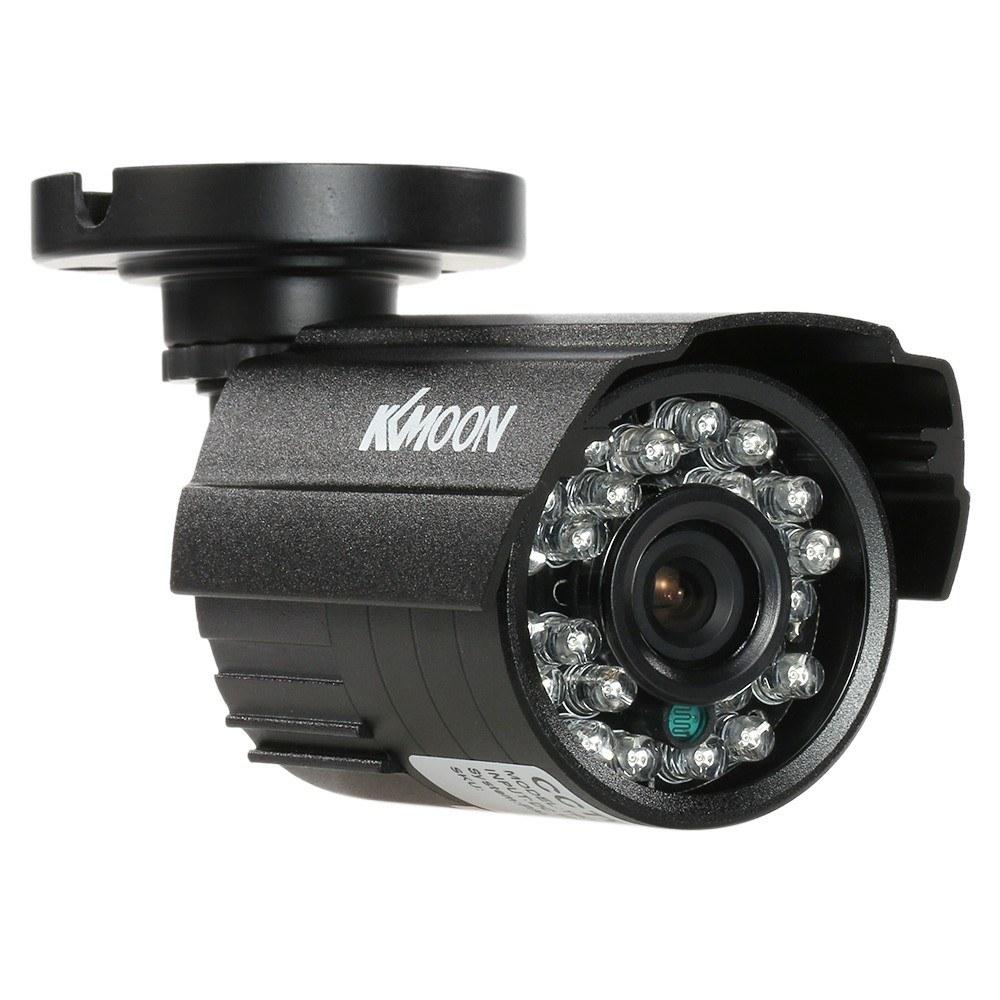

This is 1200TVL Bullet CCTV Camera, it is equipped with 24pcs infrared lamps and 1/3" CMOS Sensor, which will provide clear vision for both day and night. The waterproof function makes it more popular use. It is widely used both indoor and outdoor places.
Note: This camera is not suitable to use in America, Canada and Japan.
Features:
*1/3" AHD CMOS Sensor, 1200TVL horizontal resolution.

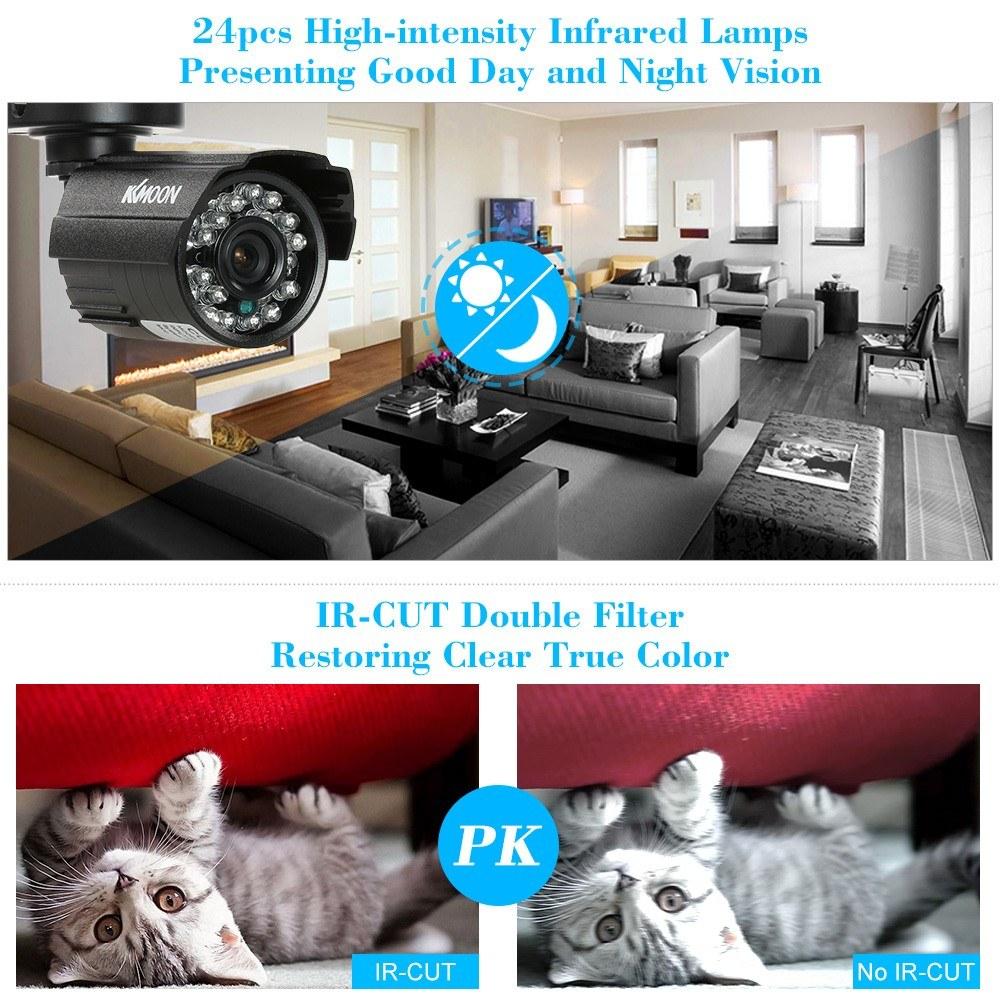

*IR-CUT double filter. Auto switch between day and night, restoring clear true color.

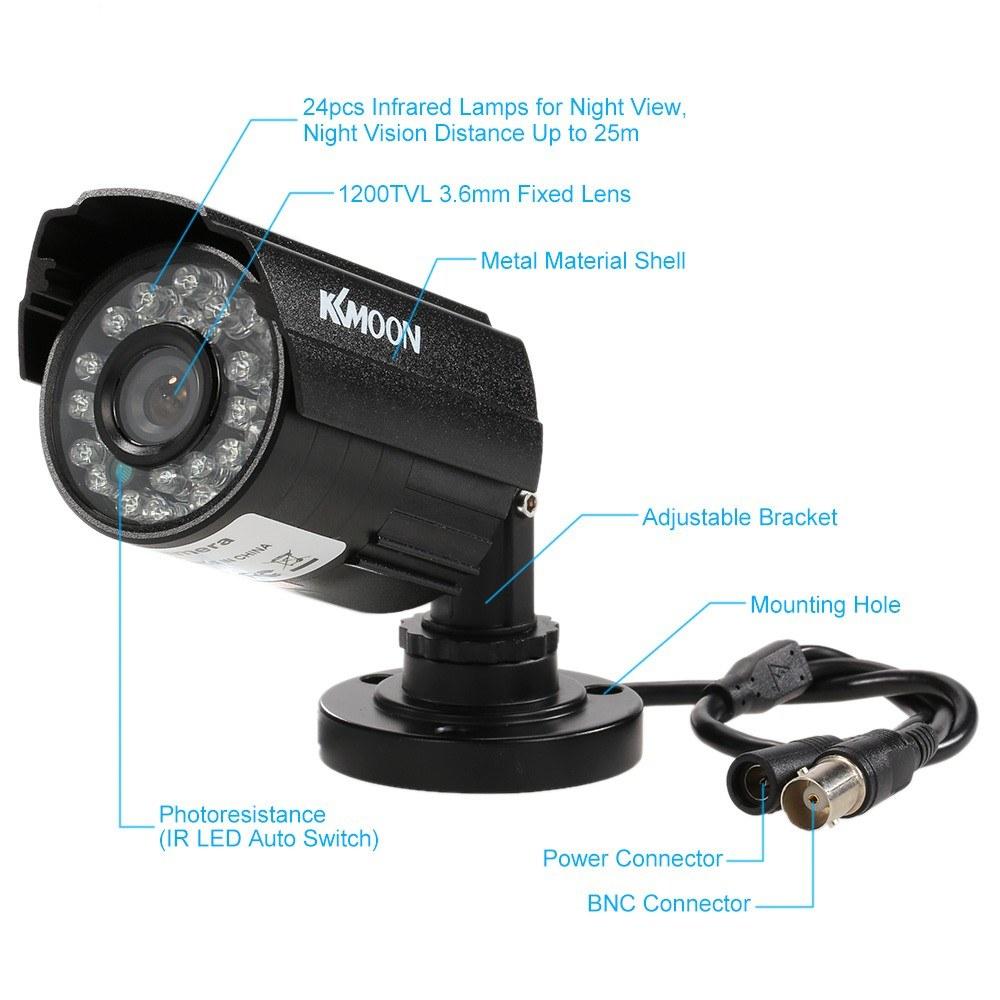

*3.6mm lens with 24pcs infrared lamps, night vision distance up to 25m.
*Auto tracking white balance, picture can be automatically adjusted according to the environmental temperature changes, so that the screen color to achieve the best effect
*There is no distortion in the intake landscape, the picture has no shadow.

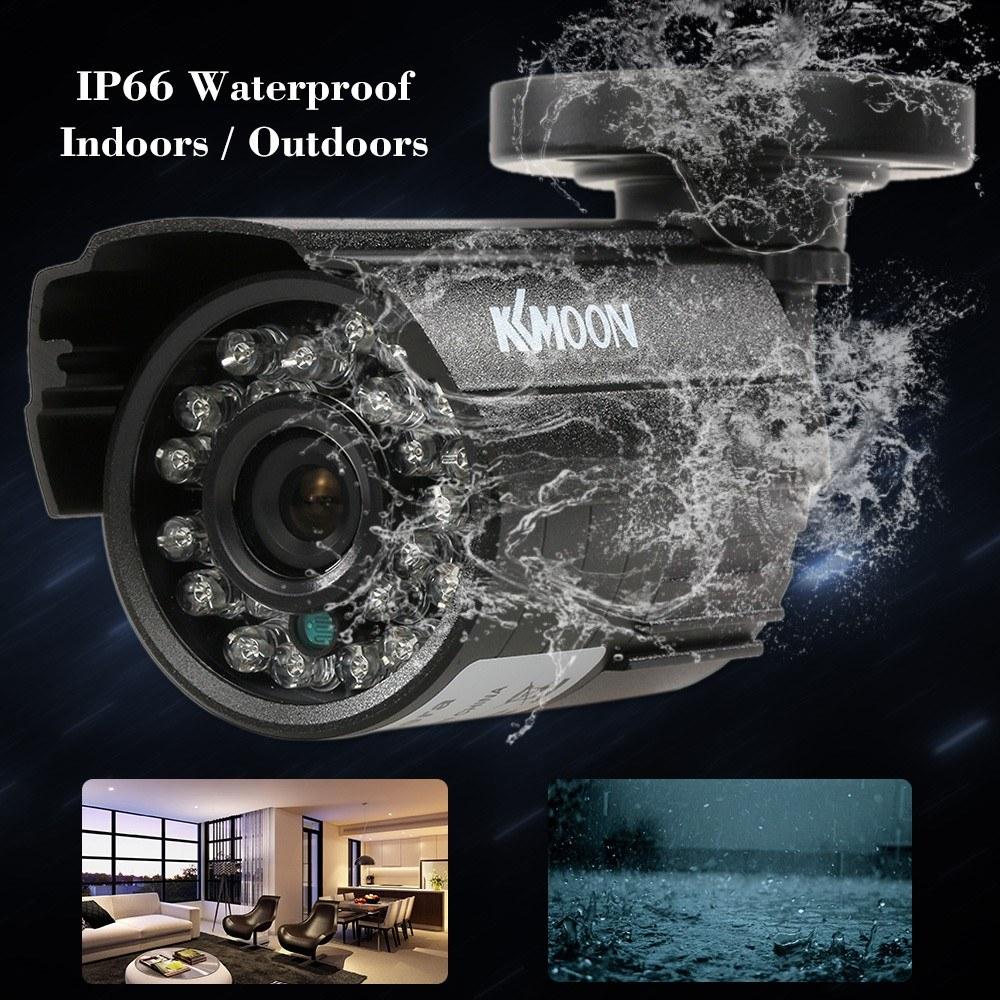

*IP66 waterproof grade, can be used both indoor and outdoor places.
*Plug and play use and installation.
Specifications:
Power Supply: DC 12V(not included)
Image Sensor: 1/3" CMOS Sensor
Signal System: PAL(not suitable in America, Canada and Japan)
Horizontal Resolution: 1200TVL
Infrared lamp: 24pcs lamps
Infrared distance: 5~25M
Min. illumination : Day(0.1Lux),Night(0.02Lux ,open the lamp)
S/N Ratio: ≥52dB
Video Output: 1/50~1/100,000S Auto/Fixed
White Balance: Auto/Manual

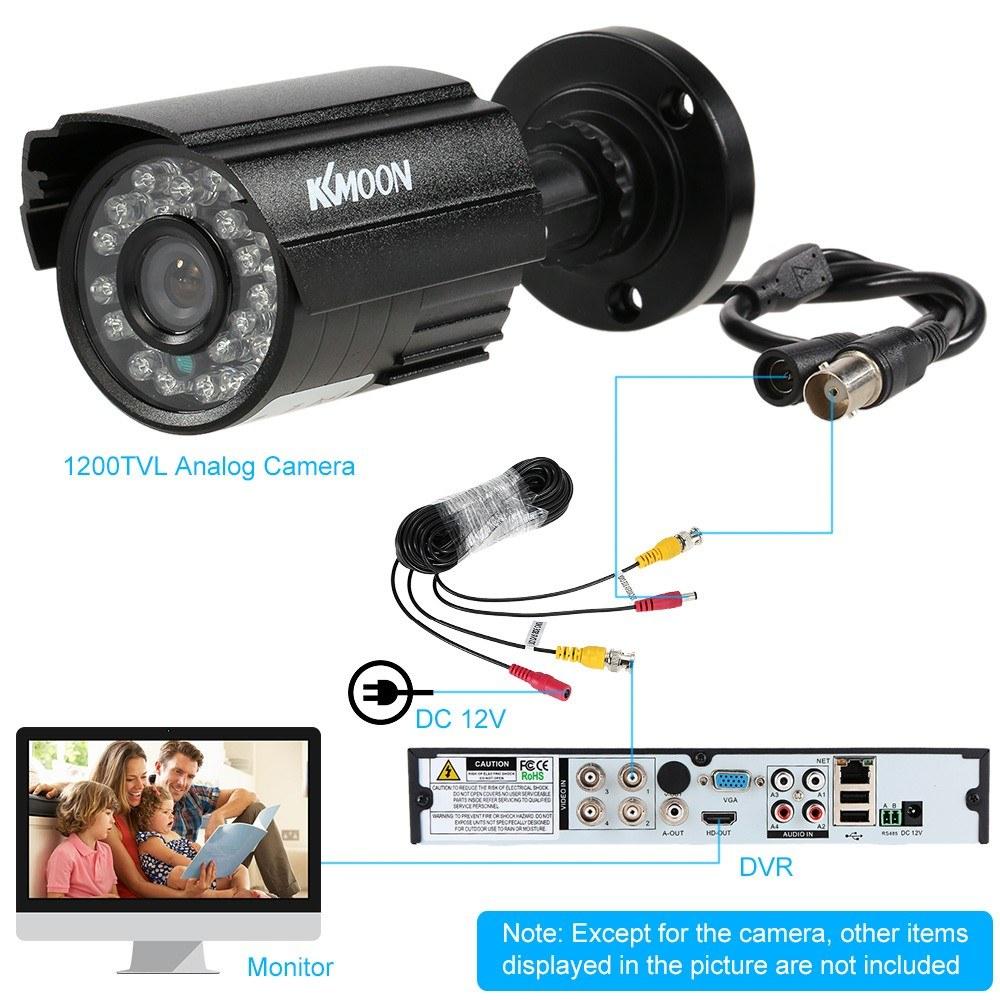

Video Output: 1.0vp-p75Ω BNC Connector
Working temperature: -20°C to +50°C
Waterproof Grade: IP66
Texture of material: Metal
Work rate:＜2W

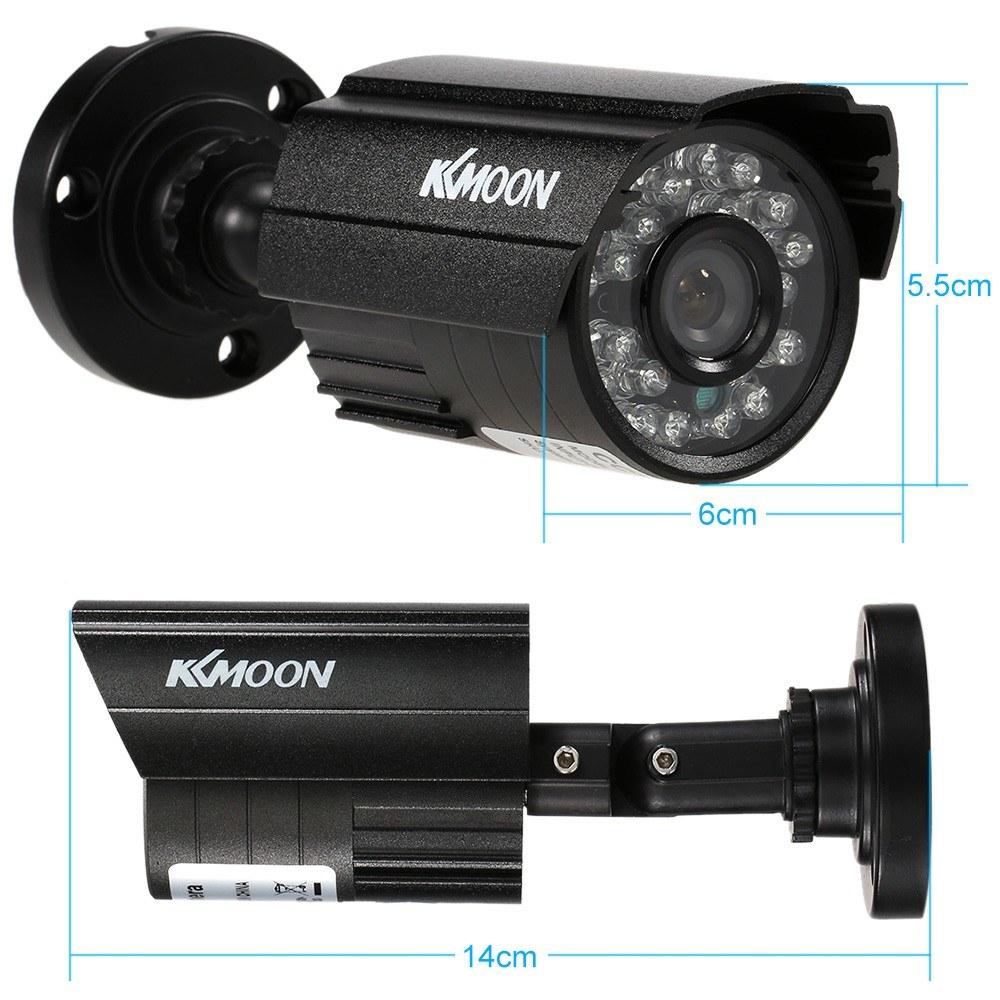

Camera Size: Approx. 6*5.5*14cm/2.3*2.2*5.5in(L*W*H)
Camera Weight: Approx. 245g/0.5lb
Package Information:
Package Size: Approx. 16*10*9.5cm/6.3*3.9*3.7in
Package Weight: Approx. 325g/0.7lb

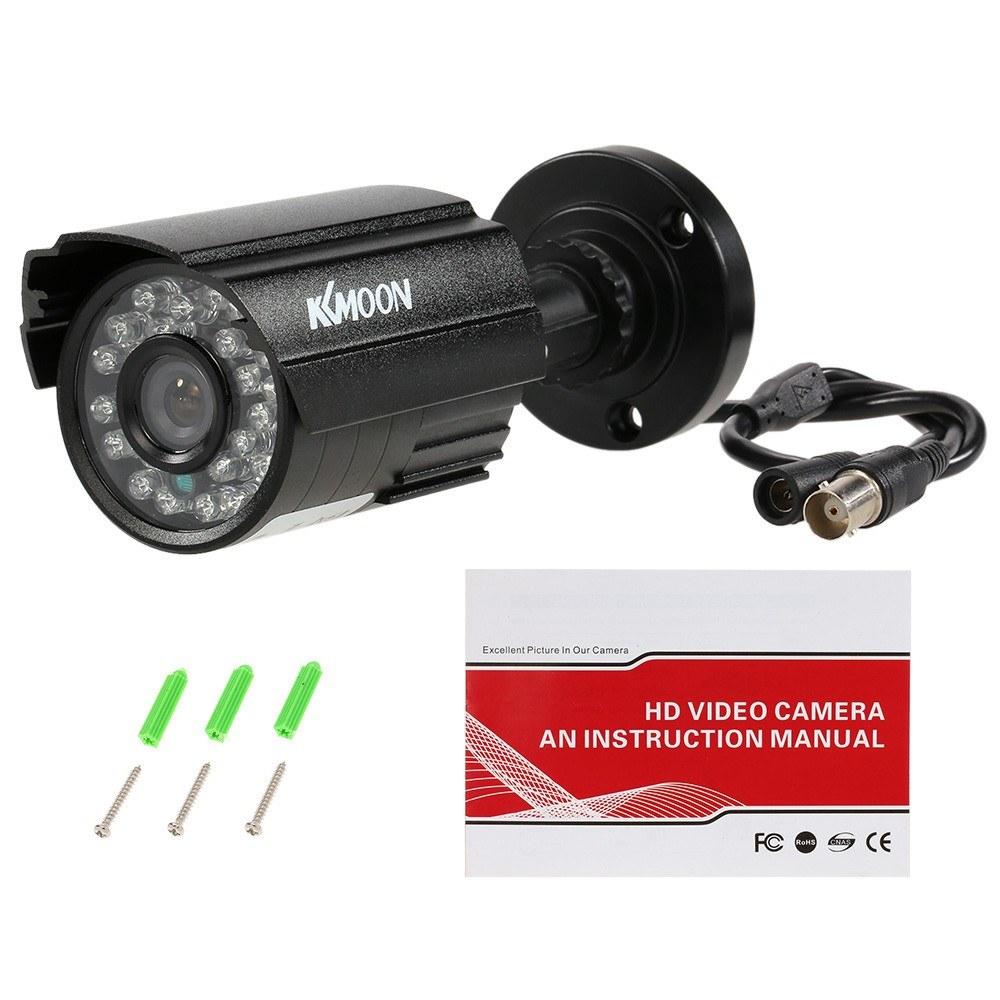

Package List:
1* CCTV Camera
1* Bag of Screws
1* User Manual(English)
