Description

This charger is designed for portable and multiple types of battery. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LCD screen displays the charging real-time status.
Features:
* With 4 kinds of charge current adjustment (300mA/500mA/700mA/1000mA); it can charge different sizes (18650/26650…/AA/AAA) of battery simultaneously.
* The charger uses a separate LCD display, allowing you to see at a glance the parameters of voltage (V), current (mA), time (h), capacity (mAh), and internal resistance (mR).
* CHARGE, FAST TEST, NOR TEST 3 modes can work simultaneously; independently set charging, fast capacity detection, normal capacity detection.
* Various protection functions, overcharge and overdischarge, short circuit, temperature, 0V voltage activation function, intelligent identification of bad battery and reverse battery detection protection.
* With a standard 5V/1000 mA USB output function, a 1-cell lithium battery to 4-cell lithium battery completes the USB output, but the Ni-MH battery cannot carry USB output.
Specifications:

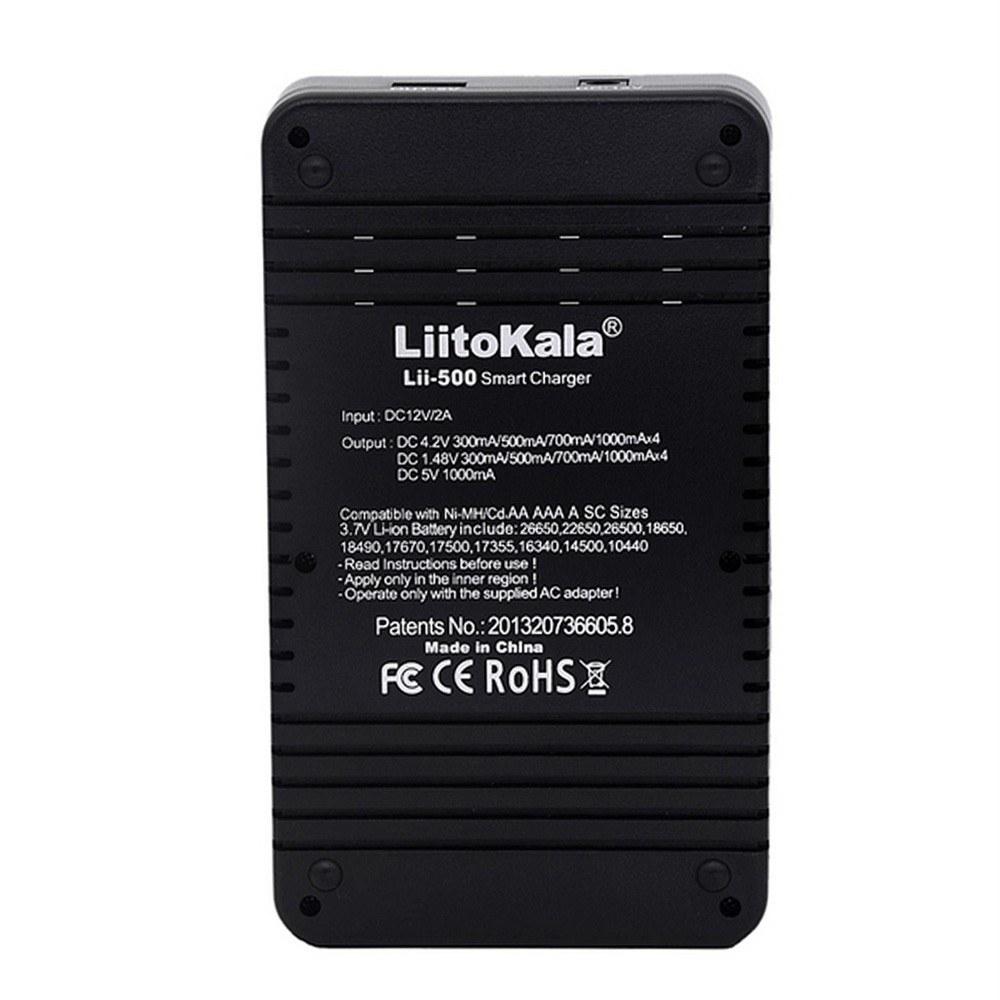

Model Number: Lii-500
Input Voltage: DC 12V/2.0A
Lithium battery charging current: 4.2V 300mA/500mA/700mA/1000mA
Ni-MH battery charge current: 1.48V 300mA/500mA/700mA/1000mA
Discharge Current: 250mA, 500mA

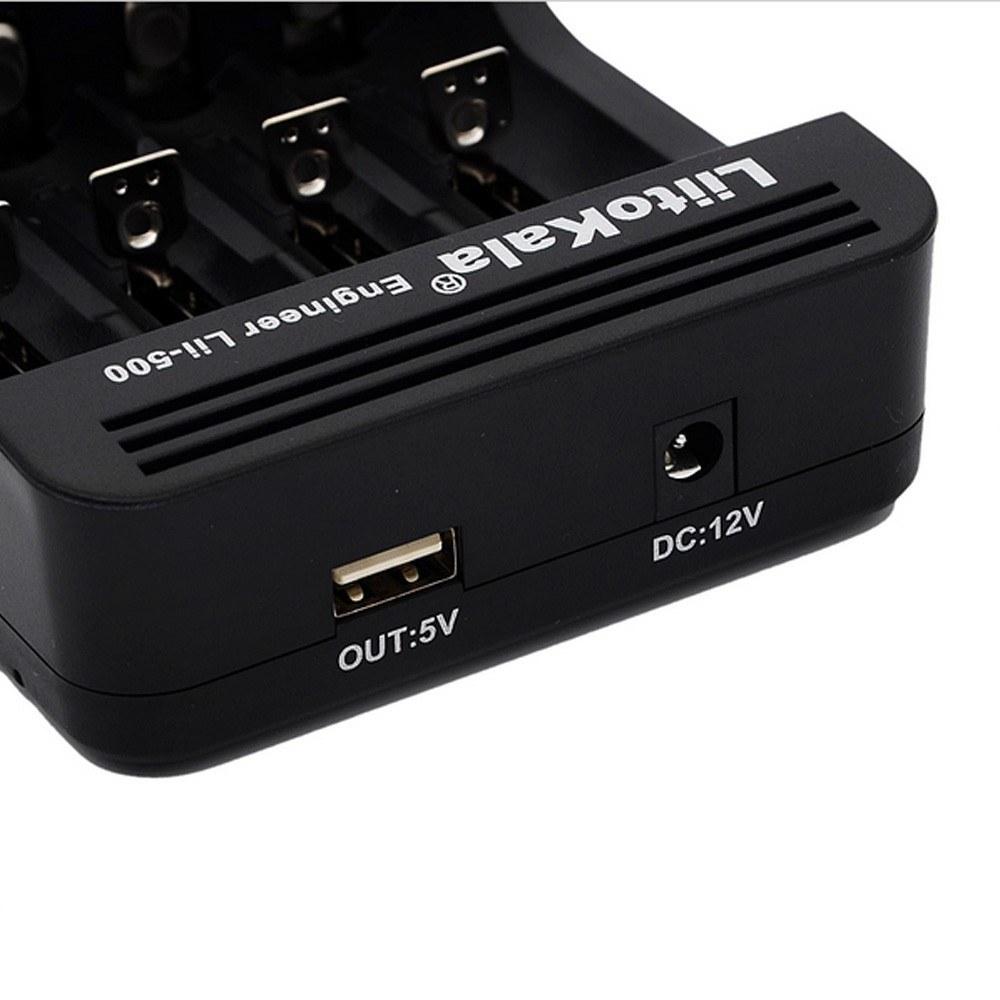

USB Output: 5V/1A
Compatible with:
3.7V Li-ion Battery including: 26650, 22650, 18650, 18490, 17670, 17500, 17355, 16340, 14500, 10440
Ni-MH/Ni-Cd: AA, AAA, A, SC
Color: Black

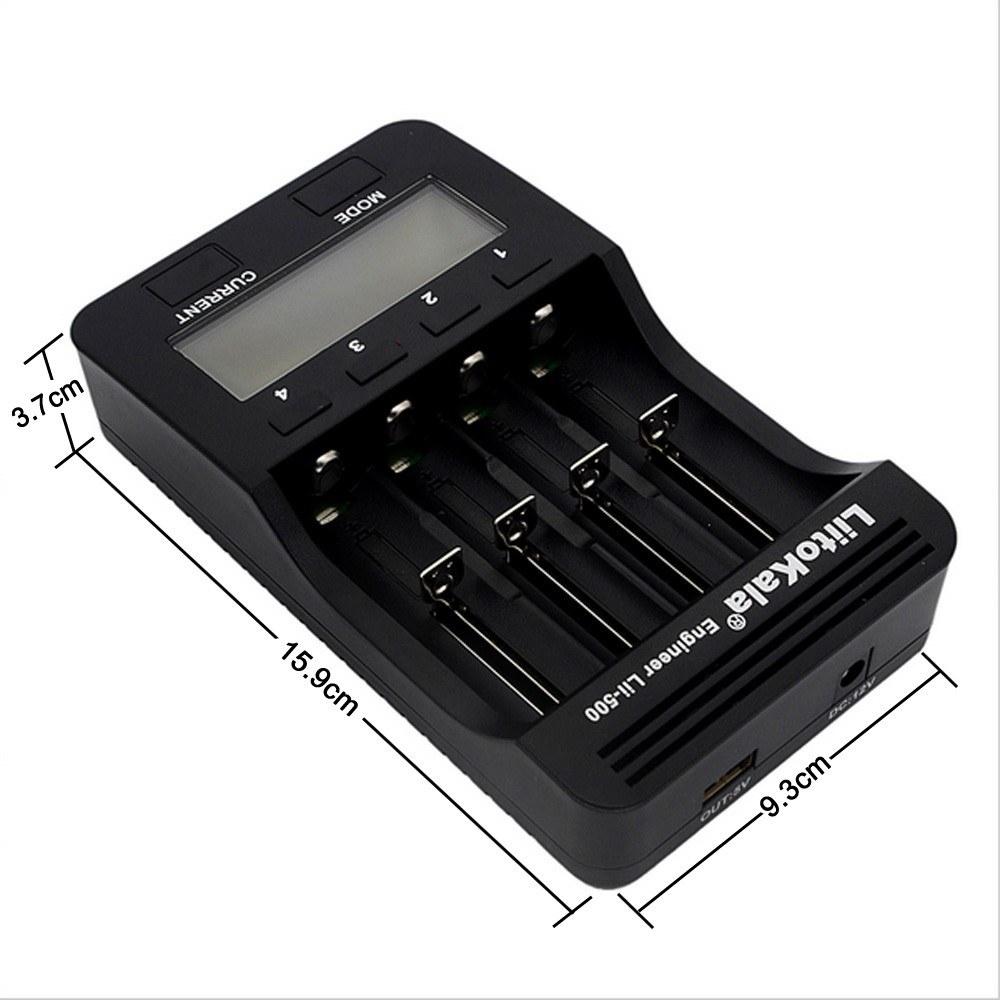

Main Item Size: approx. 15.9 * 9.3 * 3.7cm / 6.25 * 3.66 * 1.45in
Main Item Weight: approx. 210g / 7.40oz
Main Package Size: approx. 17.5 * 17.4 * 5.2cm / 6.88 * 6.88 * 2.04in
Main Package Weight: approx. 412g / 14.53oz
Package List:
1 * Battery Charger
1 * Power Adapter
1 * User Manual (English & Chinese)
