Description

Features:

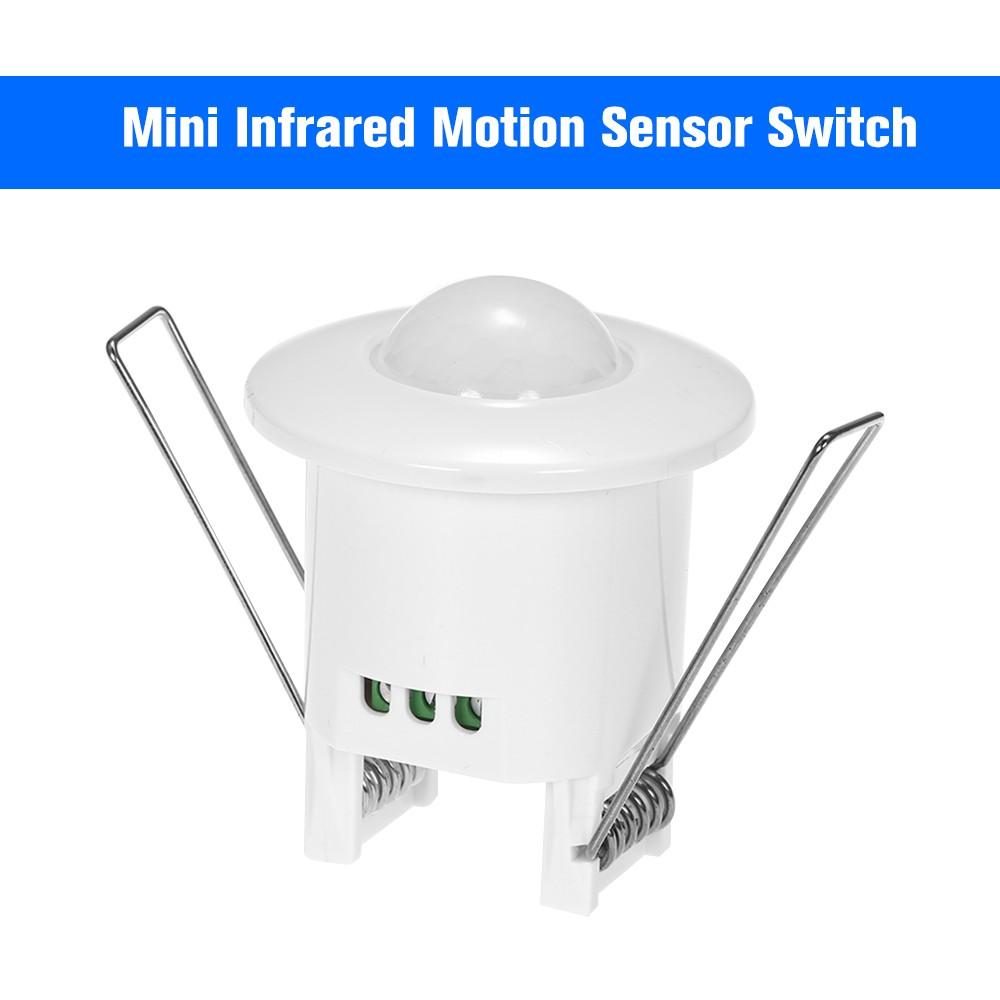

*Working Principle: The switch can detect human body’s infrared, and use infrared to control the load. More energy saving. Easy to install and simple to use.
*Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the lamp during daytime or strong light environment, or you can choose to turn on the lamp during any light environment.
*LED/Incandescent/Fluorescent Lamps Sensor Switch: Auto on when you get in of the induction range(Max. 6m), then it will automatically close after a delay(time range is adjustable) after the person leaves.

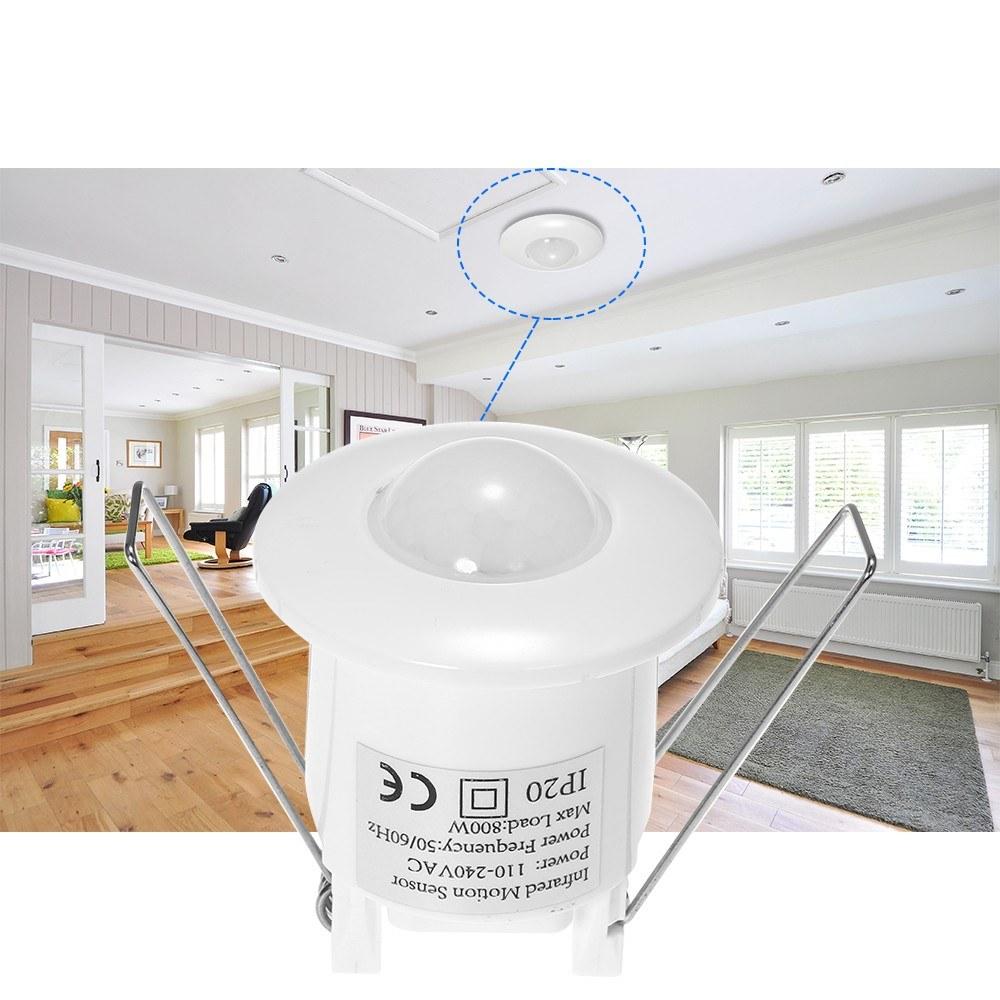

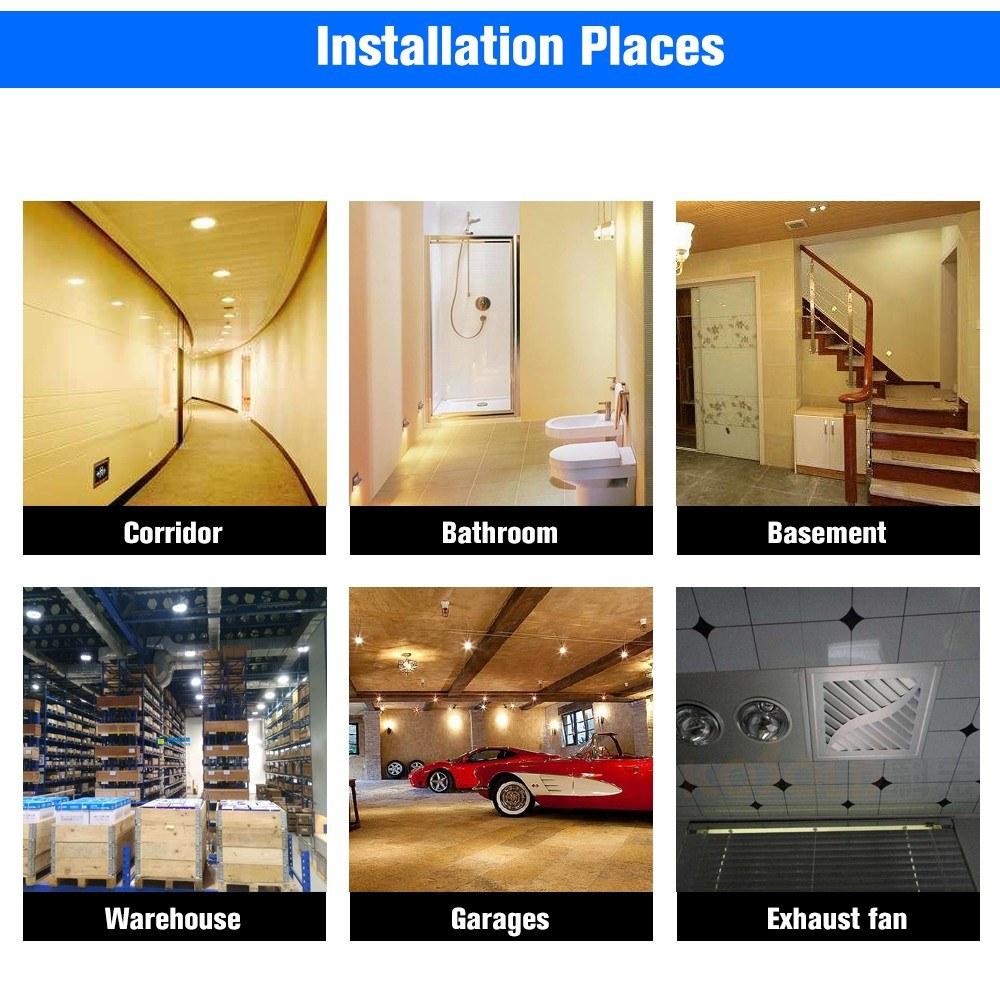

*Wide Applications: Widely used for motion-activated lighting in corridor, bathroom, basement, warehouse, garages, etc, electrical automatic control such as automatic ventilation exhaust fan, etc.
*Temperature Compensation: Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
Power Sourcing: 110V-240V AC
Power Frequency: 50/60Hz
Power Consumption: 0.45W (work), 0.1W (static)
Max. Load: 800W Incandescent / 300W Fluorescent
Detection Range: 360°
Detection Distance: max. 6m (
Detection Motion Speed: 0.6~1.5m/s

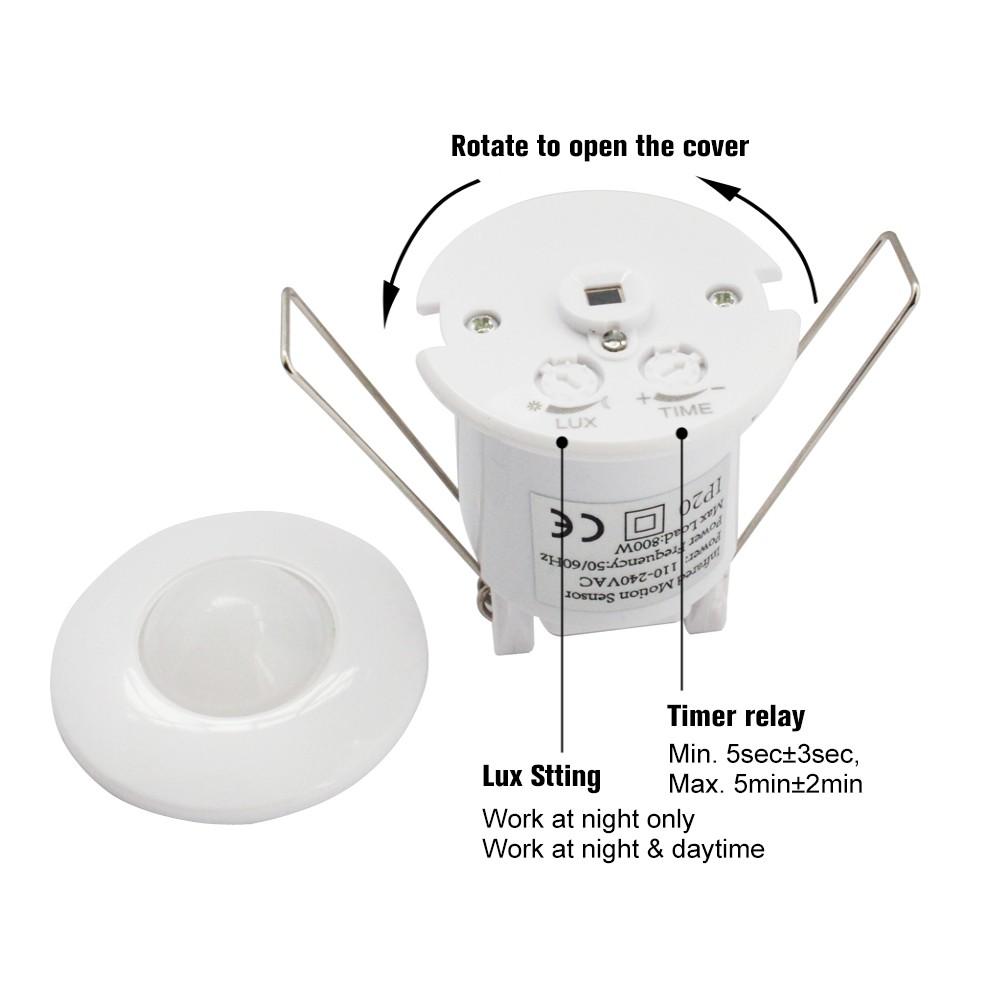

Time-Delay: min. 5sec±3sec, Max. 5min±2min
Ambient Light: 5-300LUX (Adjustable)
Install on Lantern: hole size 65mm
Working Temperature: -20~+40°C
Working Humidity:

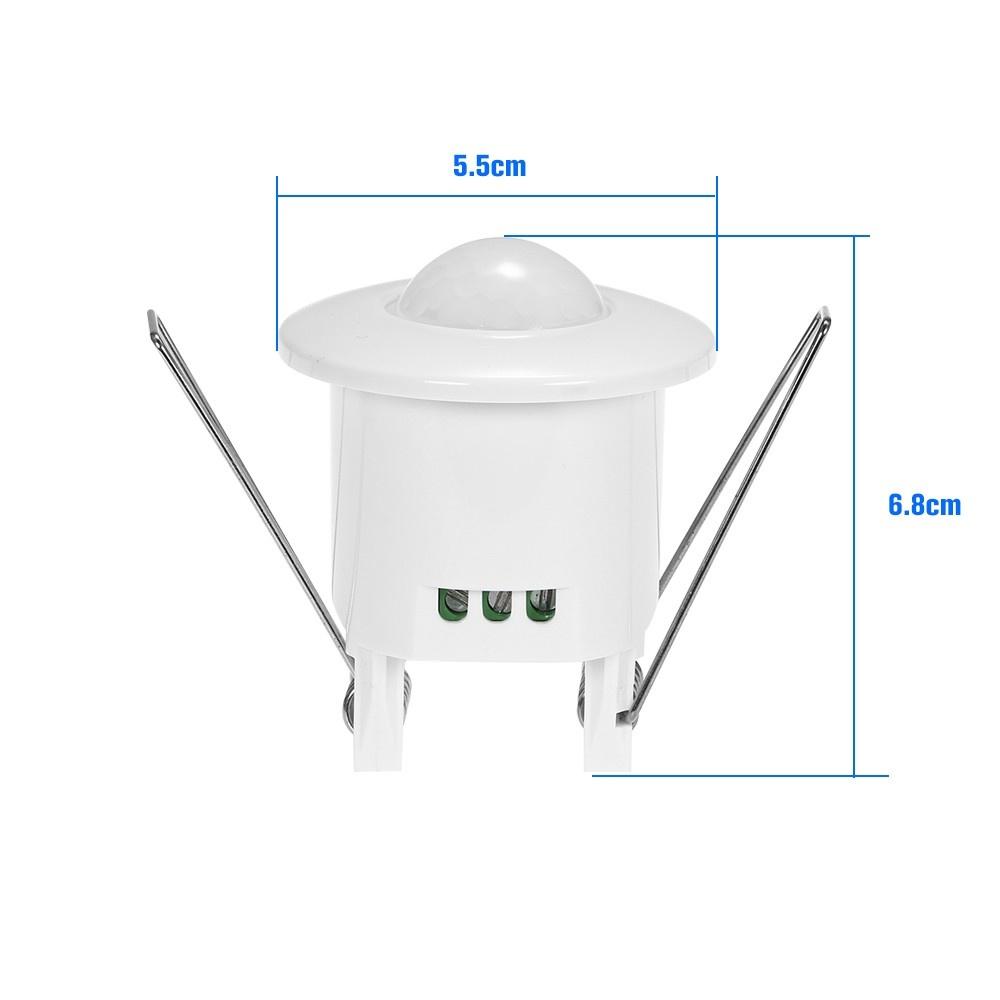

Item Size: Approx. 5.5 * 5.5 * 6.8cm(L*W*H)
Item Weight: Approx. 51g / 1.8oz
Package Information:
Package Size: Approach. 7.8 * 6.8 * 6.8cm / 3.1 * 2.7 * 2.7in
Package Weight: Approach. 73g / 2.6oz
Package List:
1 * PIR Ceiling Sensor Switch
1 * User Manual (English)
