Description

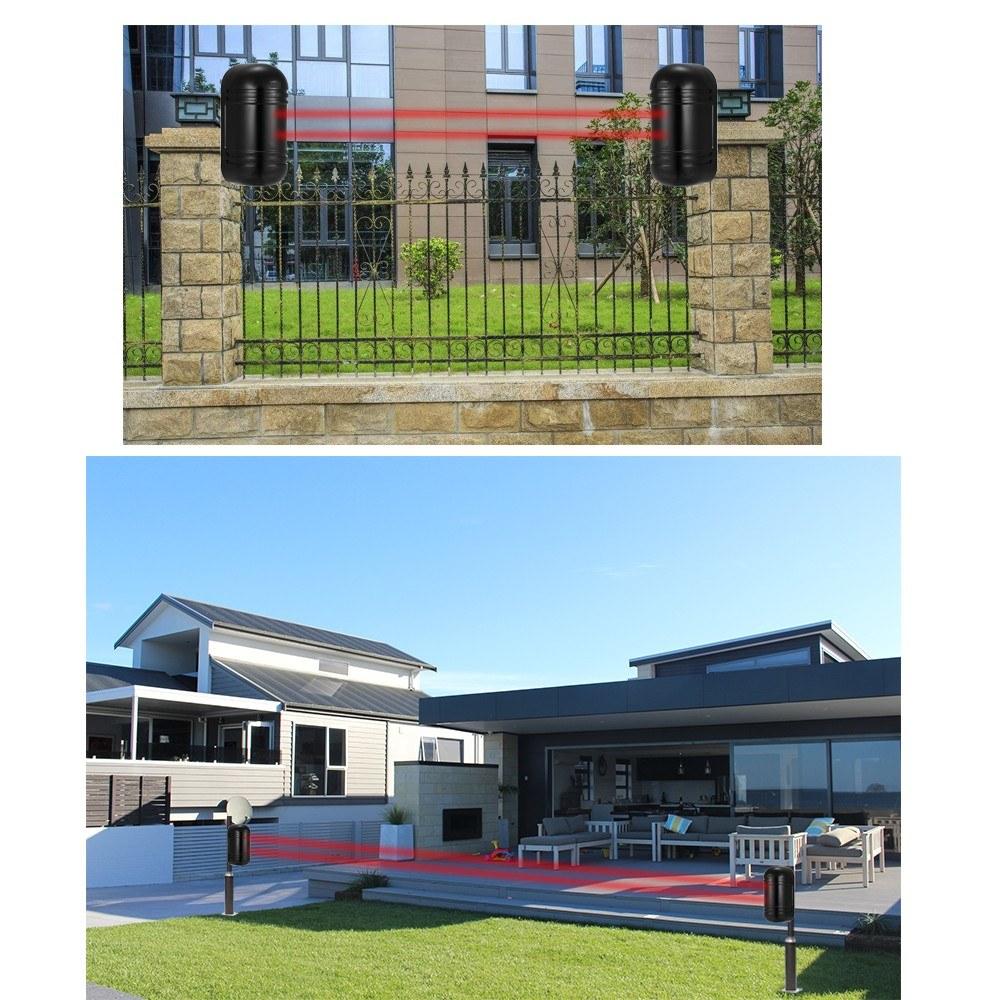

Overview:This wired dual beam infrared sensor is stable and reliable. When interrupt the infrared, the relay will output switch signal, it’s suitable for window/door/fence, park, courtyard perimeter defense and alarm system as anti-burglar body detection.
Features:*Dual Beam Infrared Sensor with professional CPU chips, strong anti-interference, high levels of anti-RFI / EMI capability.
*Full-function diagnostics, environmental adaptive, fault lock. With long lifesapn and low power consumption.

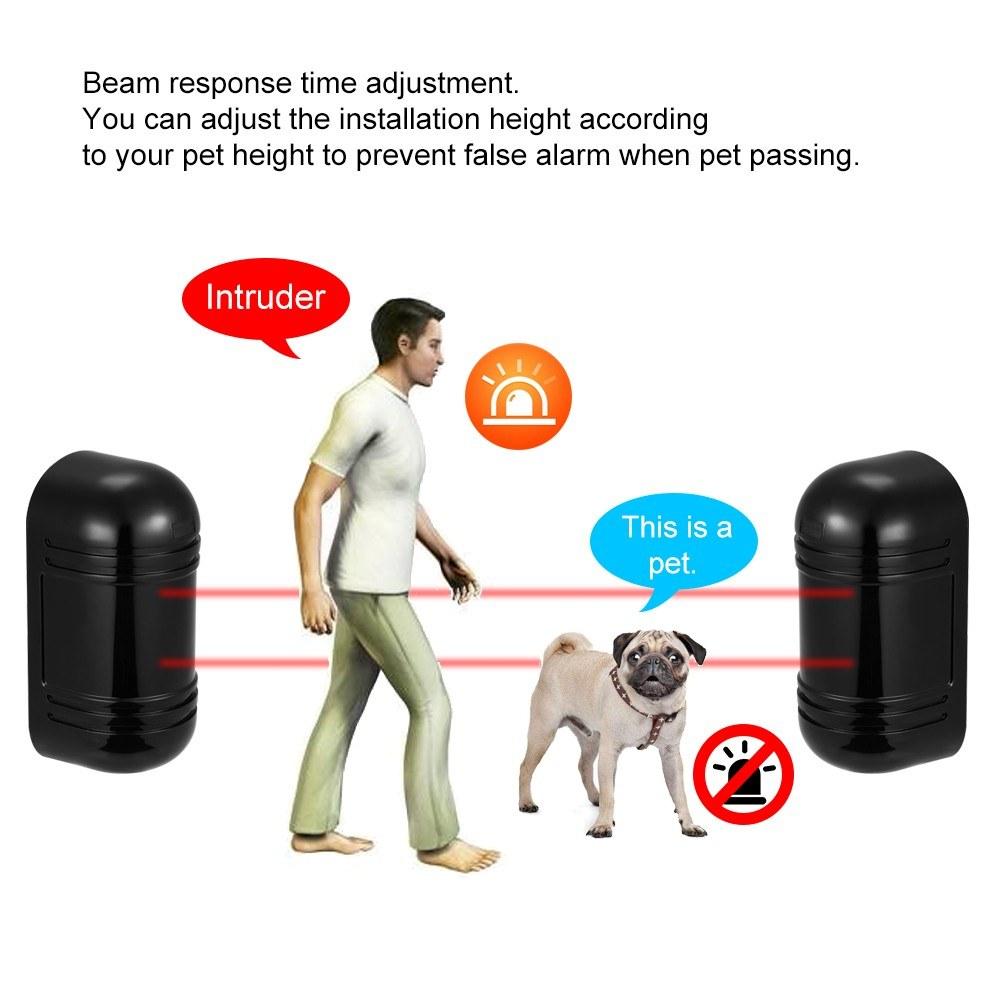

*Beam response time adjustment. You can adjust the installation height according to your pet height to prevent false alarm when pet passing.
*Digital Fuzzy Artificial Intelligence Identification: Using artificial intelligence fuzzy judgments, false positives to a minimum.
*Optical lens up and down while structural adjustments, to adjust faster and more accurately.
Specifications:Power Supply: DC13.8~24V; AC11~18VCurrent consumption: 65mA maxLight Source: Infrared LED Infrared beam number: Two beams Detection Way: Interrupt two light beams at the same timeAlarm Distance: 100m(outdoor); 300m(indoor) Induction Speed: 50-700msecAlarm Output: N/O & N/C OptionalContact Capacity: AC/DC30V 0.5AmaxLight adjusting angle (Horizontal): 180° (±90°)Light adjusting angle (Vertical): 20° (±10°)Work With: Barrier Defense/Alarm System,etc.Material: Aluminum, PCWorking temperature: -25°C to +55°CItem Size/Each: 16.9 * 8.5 * 8.5cm (D*W*H)Item Weight(with case)/Each: 255g
Package Information:Package Size: Approx. 24.3 * 17.8 * 9cm / 9.6 * 7 * 3.5inPackage Weight: Approx. 710g / 25oz

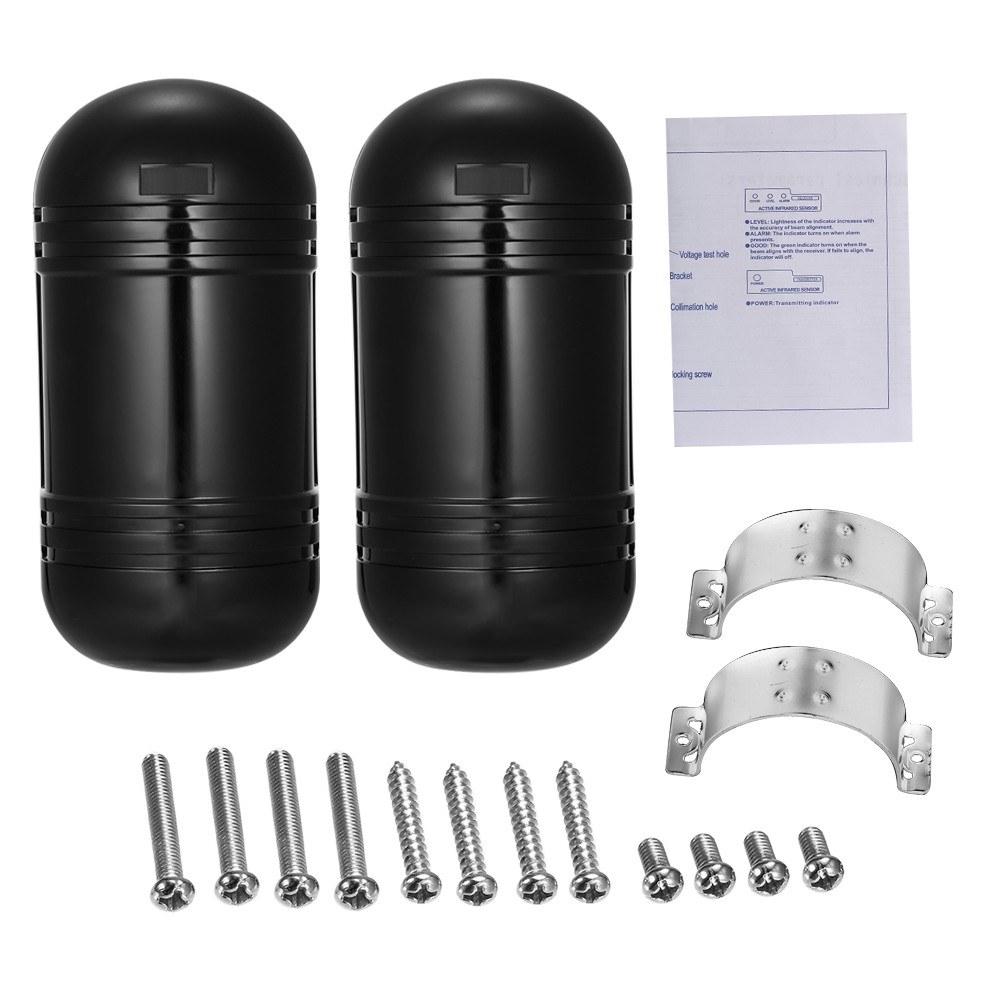

Packing List:1 * Pair of Dual Beam Sensor1 * Set of Mounting Screws1 * User Manual
